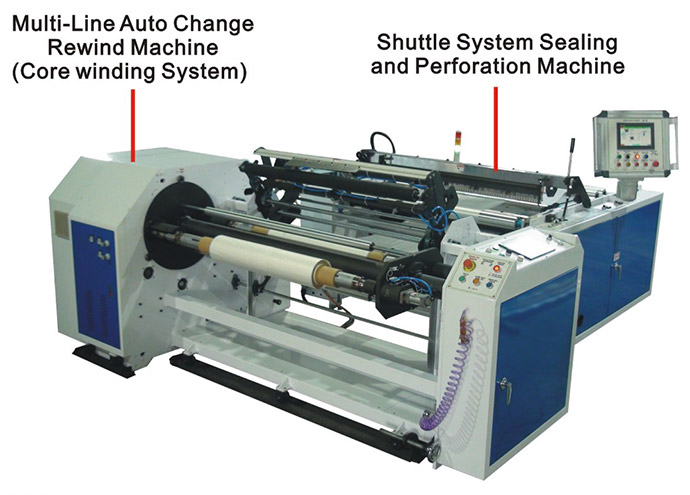

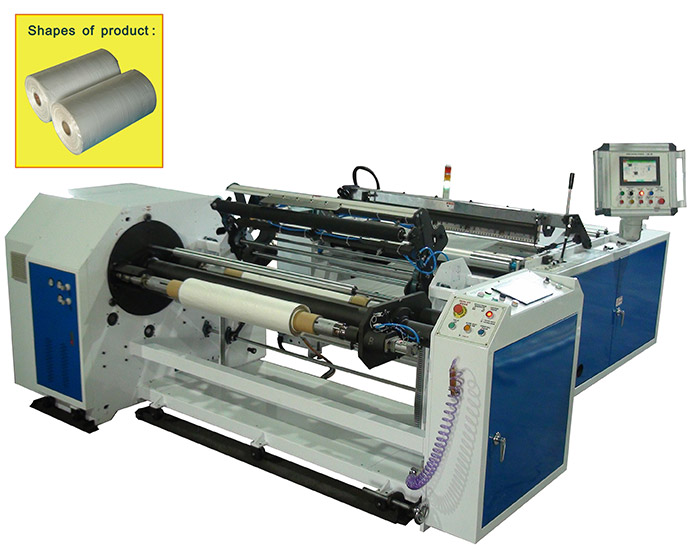

Auto-Change Bag on Roll Making Machine
with Paper Core Device - Super Large Bag and Jumbo Roll Servo Shuttle system
(in-line extruder possibility)

MACHINE FEATURE :

Super large bag and Jumbo products roll diameter up to Max. 450mm.
Easy change the bag length and tension by touch screen digital setting.
Shuttle type Sealing and Perforation designed make fast speed and smoothly work,Tensionless sealing; Low noise running and easy change perforation knife designed.
Every knife can change the tooth knife pitch for user require.
Printing mark function possibility.(optional)
Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
Automatic speed follow by in-feed dancing device of IN-LINE type.
Easy to operate and maintain full-featured surveillance system by HMI.
Easy change designed for different core size of automatic rewind machine.
Micro tension system for thin film(min. 8 micrometer) and very easy to tear.
Heavy duty film make possibly. The total thickness for bottom sealing up to 240micro.

SPECIFICATIONS :

Model		Bag Width(mm) line x Dia.	Bag Length/ Film thickness (mm)	Capacity (Meter /min)	Servo power /Servo quantity	Heater	Power Required	Air supply Required	Machine Size L×W×H (M)	Packing Size L×W×H (M)	N.W./ G.W. (Kgs)
OFF-LINE TYPE	STR-750S-A21J	W300~750 Roll max.450	400~3000/ 0.010~0.12	Max. 100M/ line/ minute	11KW/ 6 Servo	M3.5kw	13.5 KW	0.6 Mpa 400ml / min	7.0×2.61 ×1.7	R-1.8x2.7x1.8 M-2.0x1.8x1.5 U-1.7x1.4x1.5	4700/ 5600
	STR-1000S-A21J	W450~1000 Roll max.450	400~3000/ 0.010~0.12	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.0kw	15.5 KW	0.6 Mpa 400ml / min	7.0×2.86 ×1.7	R-1.8x2.9x1.8 M-2.0x2.0x1.5 U-1.7x1.6x1.5	5200/ 6300
	STR-1250S-A21J	W600~1250 Roll max.450	400~3000/ 0.010~0.12	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.5kw	16.0 KW	0.6 Mpa 400ml / min	7.0×3.06 ×1.7	R-1.8x3.1x1.8 M-2.0x2.2x1.5 U-1.7x1.8x1.5	6000/ 7300
	STR-1500S-A21J	W700~1500 Roll max.450	450~4000/ 0.010~0.12	Max. 90M/ line/ minute	13.5KW/ 6 Servo	M5.0kw	17.5 KW	0.6 Mpa 400ml / min	7.0×3.31 ×1.7	R-1.8x3.4x1.8 M-2.0x2.6x1.5 U-1.7x2.2x1.5	6600/ 8100
	STR-1750S-A21J	W850~1700 Roll max.450	500~5000/ 0.012~0.12	Max. 80M/ line/ minute	13.5KW/ 6 Servo	M5.5kw	18.5 KW	0.6 Mpa 400ml / min	7.0×3.56 ×1.7	R-1.8x3.7x1.8 M-2.0x2.9x1.5 U-1.7x2.5x1.5	7700/ 9500
IN-LINE TYPE	STR-750Si-A21J	W300~750 Roll max.450	400~3000/ 0.010~0.12	Max. 100M/ line/ minute	11KW / 6 Servo	M3.5kw	13 KW	0.6 Mpa 400ml / min	5.3×2.66 ×1.7	R-1.8x2.7x1.8 M-2.0x1.8x1.5	4400/ 5300
	STR-1000Si-A21J	W450~1000 Roll max.450	400~3000/ 0.010~0.12	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.0kw	15 KW	0.6 Mpa 400ml / min	5.3×2.86 ×1.7	R-1.8x2.9x1.8 M-2.0x2.0x1.5	4900/ 5950
	STR-1250Si-A21J	W600~1250 Roll max.450	400~3000/ 0.010~0.12	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.5kw	15.5 KW	0.6 Mpa 400ml / min	5.3×3.06 ×1.7	R-1.8x3.1x1.8 M-2.0x2.2x1.5	5550/ 6900
	STR-1500Si-A21J	W700~1500 Roll max.450	450~4000/ 0.010~0.12	Max. 90M/ line/ minute	13.5KW/ 6 Servo	M5.0kw	17.5 KW	0.6 Mpa 400ml / min	5.3×3.31 ×1.7	R-1.8x3.4x1.8 M-2.0x2.6x1.5	6200/ 7600
	STR-1750Si-A21J	W850~1700 Roll max.450	500~5000/ 0.012~0.12	Max. 80M/ line/ minute	13.5KW/ 6 Servo	M5.5kw	18 KW	0.6 Mpa 400ml / min	5.3×3.56 ×1.7	R-1.8x3.7x1.8 M-2.0x2.9x1.5	7200/ 8400

PS:For packing size--R=Rewind machine;S=Slit sealing device;M=Main sealing and perforation machine;U;Unwind device.
