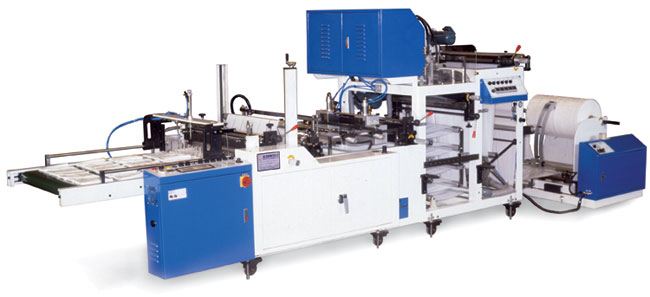

Bag Making Machine with Slit-Seal

Type:Rn-ASW

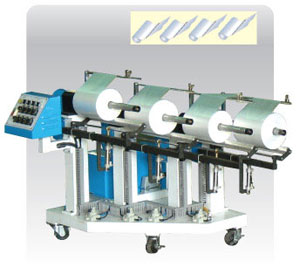

Rewind Device(Optional)		 Type:T2
Fold Device(Optional)
FEATURES :
  • The unwinder is combined with EPC and auto-tension control system.

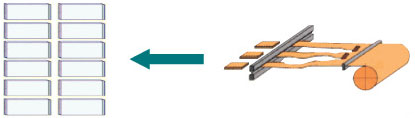

  • Bottom seal bag combined with hot slit seal function, can easily produce large sums of small width bags.
  • Only one width master roll, can produce multi-lane bags with small widths.
  • Changing slitting width is easy and quick.
  • Different widths of bags with hot slitting may be produced simultaneously.
  • After adding the multi-lane rewinder, it can produce continuous perforate products on roll. (Optional)
  • Can be equipped with punching unit. (Optional)
SPECIFICATIONS :
Model Bag Size(Max.) Capacity
(cycle/min.)		 Thickness
of Film(mm)		 Jumbo
Roll Width		 Main Motor Power Required Machine Size
LxWxH(M)
Line Width
(mm)		 Length
(mm)
SHG-500-5 1
2
3
4
5		 50~450
50~225
50~150
50~112
50~90		 50~1010
50~1010
50~1010
50~1010
50~1010		 30~120 0.03~0.15 200~440 AC 1HP 4P
&Gear 15:1		 6.2KW 4.9X1.15X1.5
SHG-800-7 1
2
3
4
5
6
7
8		 50~750
50~375
50~250
50~187
50~150
50~125
50~100
50~87
 50~1010
50~1010
50~1010
50~1010
50~1010
50~1010
50~1010
50~1010		 30~120 0.03~0.15 200~740 AC 1HP 4P
&Gear 15:1		 7.5KW 4.9X1.45X1.5
SHG-1000-8 1
2
3
4
5
6
7
8
9		 50~900
50~450
50~300
50~225
50~180
50~150
50~125
50~112
50~100
 50~1010
50~1010
50~1010
50~1010
50~1010
50~1010
50~1010
50~1010
50~1010		 30~120 0.03~0.15 200~940 AC 1HP 4P
&Gear 15:1		 9.3KW 4.9X1.65X1.5
SHG-1200-10 1
2
3
4
5
6
7
8
9
10		 50~1100
50~550
50~362
50~275
50~212
50~181
50~150
50~137
50~112
50~100		 50~1010
50~1010
50~1010
50~1010
50~1010
50~1010
50~1010
50~1010
50~1010
50~1010		 30~120 0.03~0.15 200~1140 AC 1HP 4P
&Gear 15:1		 10.5KW 4.9X1.85X1.5
  • Design and specifications are subject to change without prior notice
