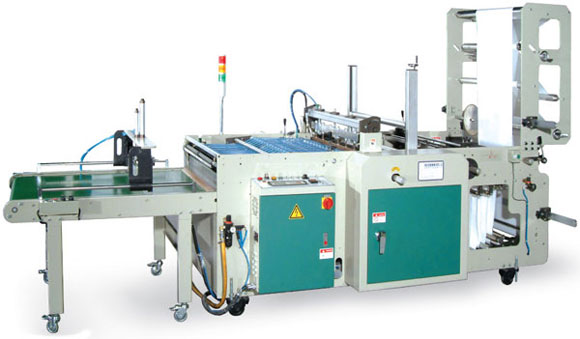

Universal Side Sealing Bag Making Machine

Side Seal
OPTIONAL EQEIPMENT :
Type:SFM-407S
FEATURES :
  • The EPC device, combined with the unwinder, is sensitive and stable for easy operation.
  • Fully automatic unwinder, unwinding speed automatically adjusted. (Optional)
  • Triangle folding device easily and smoothly folds the single layer film into double. (Optional)
  • Choice of overlapping EPC and triangle folding device to save on occupied installation space.
  • Mixed use of multifunctions can produce many different styles of bags.
  • Standard equipments are double ip folding device, bottom gusset device and side opening device. (Trimming or side opening)
  • Special rotary sealing knife design, makes the cleaning of sealing knife safe, convenient, quick and easy.
  • Special pneumatic gate and pressing roller device, cooperating with the main machine, can carry and out-feed the blocked finished product.
  • Strong and light structure, along with the rolling wheel with brake, make the machine easy to move from place to place.
  • Optional equipments are the self-adhesive device, pearl and insertion device, punching unit, double sealing device and block out-feed device.
SPECIFICATIONS :
Model Bag Size(mm) Production
Speed
(bags/min)		 Thickness of
Film (mm)		 Power Required Machine Size
LxWxH(M)
Length Width Top Folding Bottom Guessting
SV-800C 100~760 76~760 Up to 75mm Up to 65mm 30~160 0.01~0.20 6.5KW 4.5x1.55x2.0
SV-1000C 100~960 76~860 Up to 75mm Up to 65mm 30~160 0.01~0.20 8.7KW 4.7x1.75x2.0
SV-1200C 100~1150 76~960 Up to 75mm Up to 65mm 30~150 0.01~0.20 9.1KW 4.9x1.95x2.1

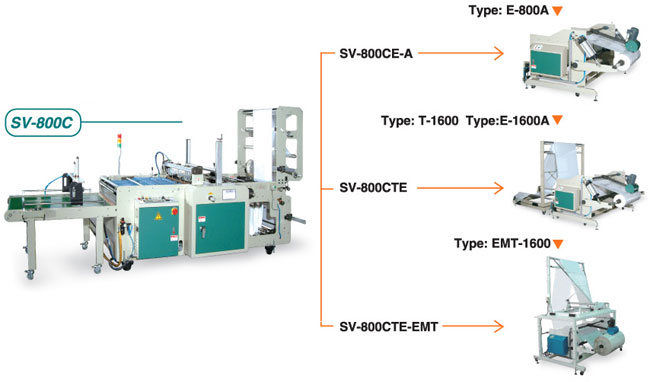

Optional Equipment 1.Air Compressor:3HP   2.Double Sealing Device   3.Punching Device   4.Top-fold Seal Device
5.Self-adhesive Tape Feeding   6.Perforation Device   7.Air Shaft 8.EPC with Auto Unwinder
9.Triangle Folding Device
  • Design and specifications are subject to change without prior notice
