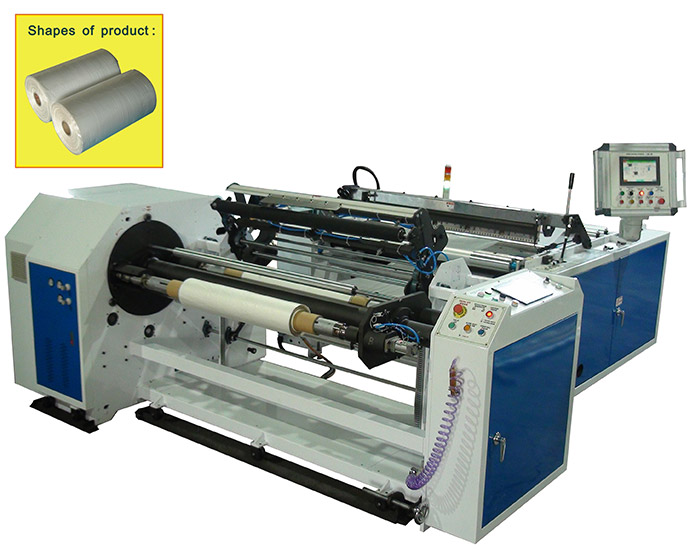

Auto-Change Bag on Roll Making Machine
with Paper Core Device Servo Shuttle system
(in-line extruder possibility)

MACHINE FEATURE :

Products roll diameter can up to Max. 220mm.
Easy change the bag length and tension by touch screen digital setting.

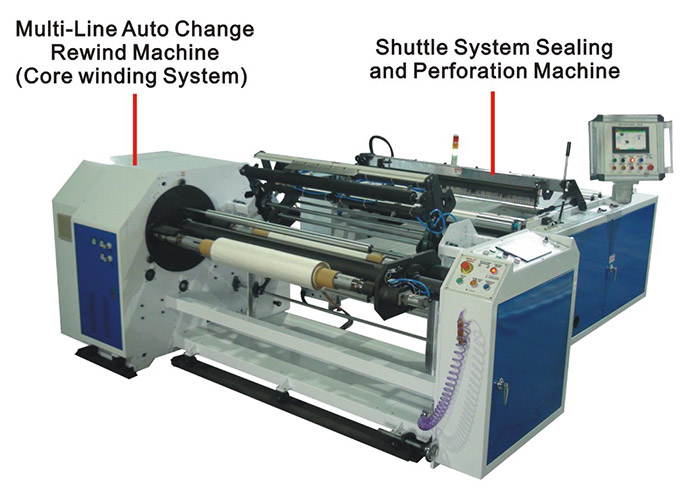

Shuttle type Sealing and Perforation designed make fast speed and smoothly work,Tensionless sealing; Low noise running and easy change perforation knife designed.
Every knife can change the tooth knife pitch for user require.
Printing mark function possibility.(optional)
Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
Automatic speed follow by in-feed dancing device of IN-LINE type.
Easy to operate and maintain full-featured surveillance system by HMI.
Easy change designed for different core size of automatic rewind machine.
Micro tension system for thin film(min. 8 micrometer) and very easy to tear.
Heavy duty film make possibly. The total thickness for bottom sealing up to 240micro.

SPECIFICATIONS :

Model		Bag Width(mm) line x Dia.	Bag Length/ Film thickness (mm)	Capacity (Meter /min)	Servo power /Servo quantity	Heater	Power Required	Air supply Required	Machine Size L×W×H (M)	Packing Size L×W×H (M)	N.W./ G.W. (Kgs)
OFF-LINE TYPE	STR-750S-A21E	W300~750 Roll max.220	220~2000/ 0.008~0.12	Max. 100M/ line/ minute	11KW/ 6 Servo	M3.5kw	13.5 KW	0.6 Mpa 400ml / min	6.8×2.61 ×1.7	R-1.6x2.7x1.7 M-2.0x1.8x1.5 U-1.7x1.4x1.5	4400/ 5300
	STR-1000S-A21E	W450~1000 Roll max.220	220~2000/ 0.008~0.12	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.0kw	15.5 KW	0.6 Mpa 400ml / min	6.8×2.86 ×1.7	R-1.6x2.9x1.7 M-2.0x2.0x1.5 U-1.7x1.6x1.5	4900/ 6000
	STR-1250S-A21E	W600~1250 Roll max.220	220~2000/ 0.008~0.12	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.5kw	16.0 KW	0.6 Mpa 400ml / min	6.8×3.06 ×1.7	R-1.6x3.1x1.7 M-2.0x2.2x1.5 U-1.7x1.8x1.5	5700/ 7000
	STR-1500S-A21E	W700~1500 Roll max.220	220~2500/ 0.010~0.12	Max. 90M/ line/ minute	13.5KW/ 6 Servo	M5.0kw	17.5 KW	0.6 Mpa 400ml / min	6.8×3.31 ×1.7	R-1.6x3.4x1.7 M-2.0x2.6x1.5 U-1.7x2.2x1.5	6300/ 7800
	STR-1750S-A21E	W850~1700 Roll max.220	220~2500/ 0.012~0.12	Max. 80M/ line/ minute	13.5KW/ 6 Servo	M5.5kw	18.5 KW	0.6 Mpa 400ml / min	6.8×3.56 ×1.7	R-1.6x3.7x1.7 M-2.0x2.9x1.5 U-1.7x2.5x1.5	7400/ 9200
IN-LINE TYPE	STR-750Si-A21E	W300~750 Roll max.220	220~2000/ 0.008~0.12	Max. 100M/ line/ minute	11KW / 6 Servo	M3.5kw	13 KW	0.6 Mpa 400ml / min	5.1×2.66 ×1.7	R-1.6x2.7x1.7 M-2.0x1.8x1.5	4100/ 5000
	STR-1000Si-A21E	W450~1000 Roll max.220	220~2000/ 0.008~0.12	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.0kw	15 KW	0.6 Mpa 400ml / min	5.1×2.86 ×1.7	R-1.6x2.9x1.7 M-2.0x2.0x1.5	4600/ 5650
	STR-1250Si-A21E	W600~1250 Roll max.220	220~2000/ 0.008~0.12	Max. 100M/ line/ minute	12.5KW/ 6 Servo	M4.5kw	15.5 KW	0.6 Mpa 400ml / min	5.1×3.06 ×1.7	R-1.6x3.1x1.7 M-2.0x2.2x1.5	5250/ 6600
	STR-1500Si-A21E	W700~1500 Roll max.220	220~2500/ 0.010~0.12	Max. 90M/ line/ minute	13.5KW/ 6 Servo	M5.0kw	17.5 KW	0.6 Mpa 400ml / min	5.1×3.31 ×1.7	R-1.6x3.4x1.7 M-2.0x2.6x1.5	5900/ 7300
	STR-1750Si-A21E	W850~1700 Roll max.220	220~2500/ 0.012~0.12	Max. 80M/ line/ minute	13.5KW/ 6 Servo	M5.5kw	18 KW	0.6 Mpa 400ml / min	5.1×3.56 ×1.7	R-1.6x3.7x1.7 M-2.0x2.9x1.5	6900/ 8100

PS:For packing size--R=Rewind machine;S=Slit sealing device;M=Main sealing and perforation machine;U;Unwind device.
