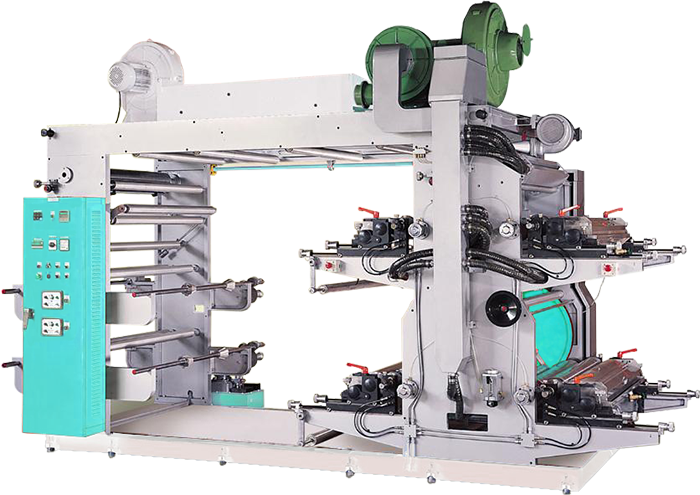

4 COLOR FLEXOGRAPHIC HIGHT SPEED PRINTING MACHINE
Printing Machine
SPECIFICATIONS :
Description\Printing with(mm) 500 800 1000
Color printed 4
Printing speed (max.)(M/min.) 80
EPC 1
Film passing width (max.)(mm) 600 900 1100
Printing length (mm) 200-1000
Printing possibility 0+4, 1+3, 2+2
Main motor (HP) 5 7 1/2 7 1/2
Heater (KW) 1.5 X 16 1.5 X19 1.5 X 22
Blower for heater (HP) 1/2 HP X1 , 2HP X 2 , 5HP X 1 1/2 HP X1 , 7 1/2 HP X 1 , 2HP X 2
Hydraulic pump motor (HP) 1
Lnk roll motor (HP) 1/2
Torque motor (kg) 30 X 2 50 X 2
Total Power(KW) 22 25 28

Printing width
(mm)		 Length
(cm)		 Width
(cm)		 Hieght
(cm)		 Net weight
(kg)		 Gross weight (kg) Loading Volunie
(cm)
500 430 190 270 4000 4900
800 430 216 270 4300 5200 457x220x230
1000 430 236 270 4500 5400
  • Design and specifications are subject to change without prior notice
