BOTTOM SEAL MODEL

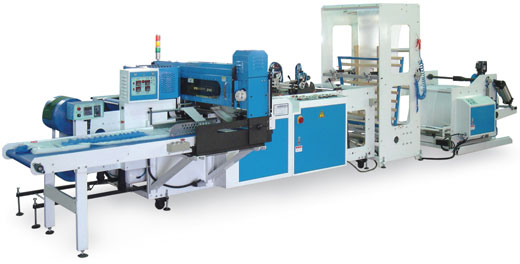

Fully Automatic Bottom Seal with Side Gusset Shopping Bag Making Machine
Production Speed：50 Bags/min
Optional Equipment：1.Air Compressor:10HP 2.Air shaft
Stand-up Device
Rotary Seal Knife Design
Side Gusset Device
FEATURES :
  • Equipped with fully automatic unwinder, no adjustment on out-feeding speed is necessary.
  • EPC device stabilizes the film in-feeding position.
  • Multi-angle adjustable folding device, for making folded shaped bags from ordinary film.
  • Stand-up sealing device can make the bottom sealed stand-up shopping bags.
  • Special sealing devices create very strong seal. Rotary seal knife design. Maintenance of seal knife is safe and easy.
  • Production flow is straightened out, greatly saving on occupation space.
  • Control panel indicates with graphics, overcoming language problems. All operations are clear at a glance.
SPECIFICATIONS :
Model Bag Size(mm) Side Gusset Max. Production Speed (bag/min) air supply Required Power Required Machine Size
LxWx H(M)
Length Width Thickness
HDPE LDPE HDPE LDPE HDPE LDPE
SLV-550SG 400~650 400~650 350~550 350~550 0.04~0.08 0.06~0.08 0~90 30~50 0.6~0.8Mpa 400L/min 8.0KW 7.3x2.0x2.2
  • Design and specifications are subject to change without prior notice
