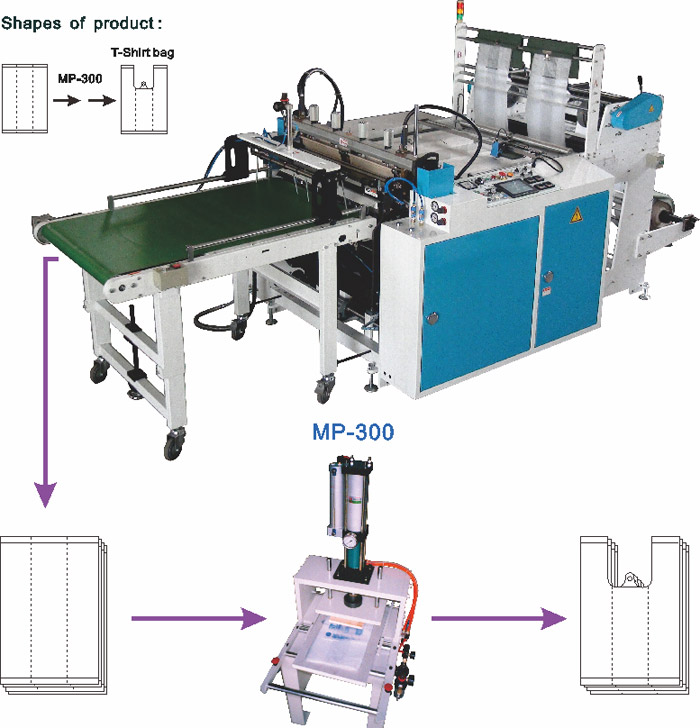

T-Shirt Bag Making Machine
STC-VS-2 Series
High Speed Semi-auto 2 Track Hot-cut T-Shirt Bag
Making Machine with Air Tension control & Conveyor
T-Shirt Bag Making Machine
T-Shirt Bag Making Machine

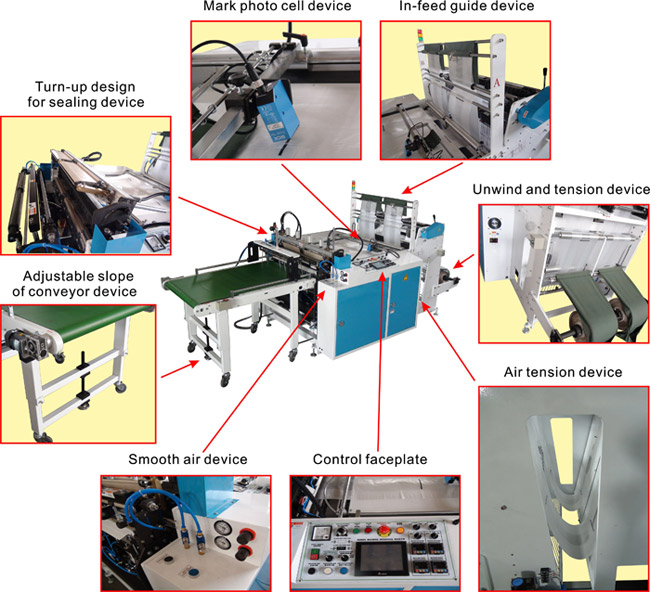

    FEATURES :
  • High speed operation. Capacity : 440 pcs/min. ( 2 lines)
  • 2 sets servo system with 2 mark sensor, can produce 2 lines printed T-shirt bag.
  • Turn-up Sealing bar design, easy to clean and maintain.
  • Hot-cut sealing with 4 temperature controllers; the sealing keep high quality.
  • Feed auto speed control by inverter and air tension control.
  • Block or no film auto stop; no film pre-connect device make film change faster.
SPECIFICATIONS :
Model
Bag Width
line×W (max)
(mm) 		Bag Length
(mm) 		Thickness
of film
(mm)		 Capacity
(pieces /min)		 Main Motor /
Servo Motor		 Heater
 Power
Required
 Air supply
Required
 Machine Size
L×W×H (M)		 Packing Size
L×W×H (M)		 N.W./G.W.
(Kgs)
STC-
800V2S-2		 2 x 360 300~700 0.012~0.035 Max. 440
(2 lines)		 2Hp 4P/
3.0 KW×2		 1.5 KW×2
+ 0.8 KW×2 		8.0 KW 0.6 Mpa
400ml/min		 4.0×1.7×1.9 3.0×1.9×2.0 2000/2400
STC-
1000V2S-2		 2 x 460 300~700 0.012~0.035 Max. 420
(2 lines)		 2Hp 4P/
3.0 KW×2		 1.9 KW×2
+ 1.0 KW×2 		9.2 KW 0.6 Mpa
400ml/min		 4.0×1.9×1.9 3.0×2.2×2.0 2200/2600
STC-
1200V2S-2		 2 x 560 300~700 0.012~0.035 Max. 400
(2 lines)		 2Hp 4P/
4.5 KW×2		 2.3 KW×2
+ 1.2 KW×2 		12 KW 0.6 Mpa
400ml/min		 4.0×2.1×1.9 3.0×2.3×2.0 2400/2900
STC-
800VS-2		 2 x 360 300~700 0.012~0.035 Max. 400
(2 lines)		 2Hp 4P/
3.0 KW×1		 1.5 KW×2
+ 0.8 KW×2 		6.8 KW 0.6 Mpa
400ml/min		 4.0×1.7×1.9 3.0×1.9×2.0 2000/2400
STC-
1000VS-2		 2 x 460 300~700 0.012~0.035 Max. 400
(2 lines)		 2Hp 4P/
4.5 KW×1		 1.9 KW×2
+ 1.0 KW×2 		8.7 KW 0.6 Mpa
400ml/min		 4.0×1.9×1.9 3.0×2.2×2.0 2150/2550
STC-
1200VS-2		 2 x 560 300~700 0.012~0.035 Max. 400
(2 lines)		 2Hp 4P/
4.5 KW×1		 2.3 KW×2
+ 1.2 KW×2 		9.7 KW 0.6 Mpa
400ml/min		 4.0×2.1×1.9 3.0×2.3×2.0 2350/2850
  • Design and specifications are subject to change without prior notice
