Printing Machine

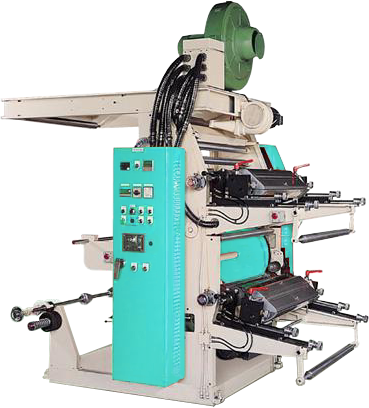

2 COLOR FLEXOGRAPHIC PRINTING MACHINE
Printing Machine
SPECIFICATIONS :

Description\Printing with(mm)

 500 800 1000
Color printed 2
Printing speed (max.)(M/min.) 60
Film passing width (max.)(mm) 600 900 1100
Printing length (mm) 200-1000
Printing possibility 0+2 , 1+1
Main motor (HP) 2 3
Heater (KW) 1.5 X 7 1.5 X 10 1.5 X 13
Blower for heater (HP) 1/2 HP , 2 HP 1/2 HP , 5 HP
Hydraulic pump motor (HP) 1
Lnk roll motor (HP) 1/2
Torque motor (kg) 30 X 1 50 X 1
Total Power(KW) 13 16 18

Printing width
(mm)		 Length
(cm)		 Width
(cm)		 Hieght
(cm)		 Net weight
(kg)		 Gross weight (kg) Loading Volunie
(cm)
500 210 190 250 2000 2700
800 210 216 250 2300 3000 227x220x230
1000 210 236 250 2500 3200
  • Design and specifications are subject to change without prior notice
