Auto-Change Core Bag on Roll Making Machine (in- line type)
Servo feeding digital Tension control with Mechanical Co-speed system

MACHINEFEATURE :

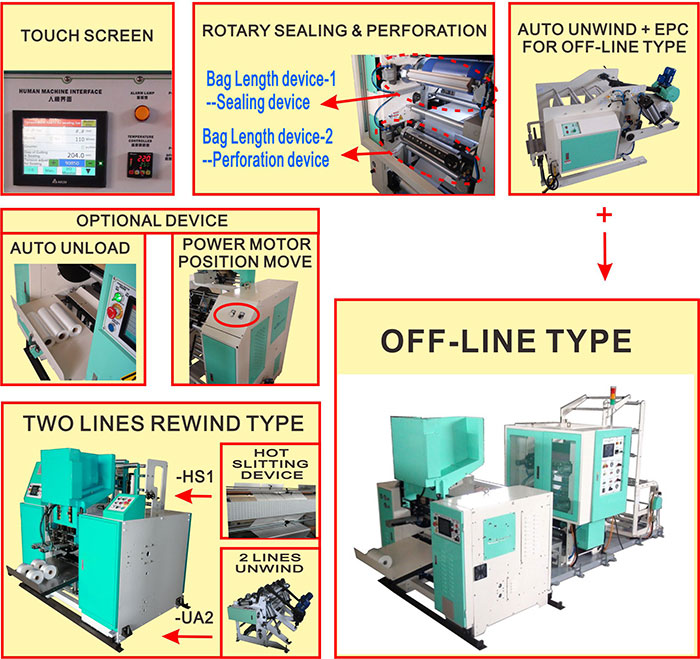

Rotary Sealing and Perforation designed make fast speed and smoothly work,Tensionless sealing; Low noise running and Long life perforation knife designed.
Every knife can use much more than 50000000 times, maximum up to 80000000 times.
Customized Perforated pitch.(optional)
Bag length by the mechanical gear ratio decision, one size is one set this device.
Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.

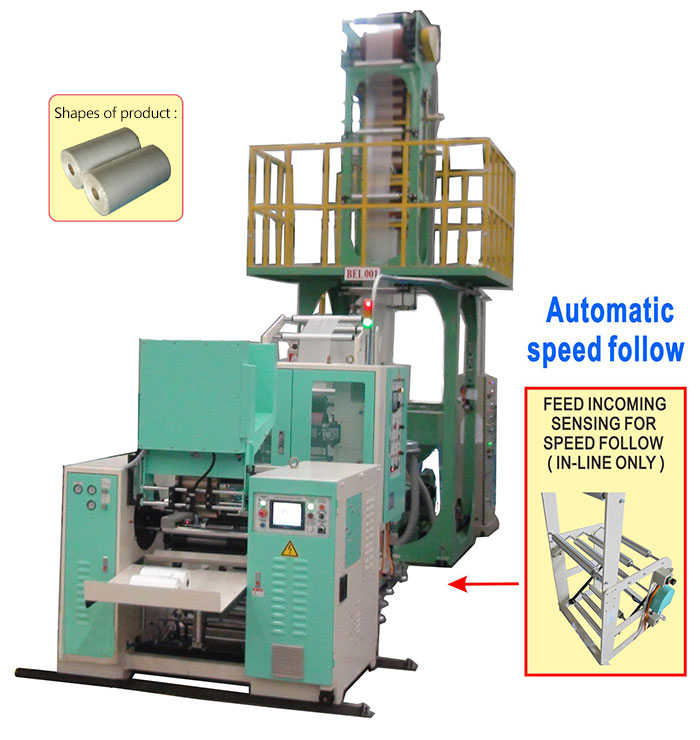

Automatic speed follow by in-feed dancing device of IN-LINE type.
Easy to operate and maintain full-featured surveillance system by HMI.
Easy change designed for different core size of automatic rewind machine.
Micro tension system for thin film(min. 5 micrometer) and very easy to tear.
Auto Unloading when products roll at full and motor edge position adjust.(optional)
Two line rewind with hot slitting system for double products possibility.(extra type)

SPECIFICATIONS :

Model		Bag Width(mm) line x Dia.	Bag Length/ Film thickness (mm)	Capacity (Meter /min)	Main Motor / Servo Motor	Heater	Power Required	Air supply Required	Machine Size L × W × H (M)	Packing Size L × W × H (M)	N.W. / G.W. (Kgs)
OFF-LINE	STR-400M -V2-A21	1 x 230~375 Roll max.130	300~600 / 0.006~0.018	Max. 105M/ line/ minute	4.4 KW / 4 Servo	2.0 KW	8 KW	0.6 Mpa 300ml / min	5.5 × 1.9 × 2.4	Sealing machine 3.5 × 1.4 × 2.2 / Winding machine 1.5 × 1.7 × 2.2	2500 / 2900
	STR-500M -V2-A21	1 x 330~475 Roll max.130	300~600 / 0.006~0.018	Max. 105M/ line/ minute	4.4 KW / 4 Servo	2.2 KW	8.2 KW	0.6 Mpa 300ml / min	5.5 × 2.0 × 2.4	Sealing machine 3.5 × 1.5 × 2.2 / Winding machine 1.5 × 1.8 × 2.2	2700 / 3200
	STR2-800M -V2-A22	2 x 220~350 Roll max.130	300~600 / 0.006~0.018	Max. 102M/ line/ minute	6.4 KW / 7 Servo	3.8 KW	11.5 KW	0.6 Mpa 300ml / min	6.7 × 2.7 × 2.5	Sealing machine 3.6 × 2.0 × 2.2 / Winding machine 2.3 × 2.8 × 2.2	3900 / 4500
IN-LINE	STR-400M -V2i-A21	1 x 230~375 Roll max.130	300~600 / 0.006~0.018	Max. 105M/ line/ minute	4 KW / 4 Servo	2.0 KW	7.8 KW	0.6 Mpa 300ml / min	5.4 × 1.9 × 2.4	Sealing machine 3.4 × 1.4 × 2.2 / Winding machine 1.5 × 1.7 × 2.2	2500 / 2900
	STR-500M -V2i-A21	1 x 330~475 Roll max.130	300~600 / 0.006~0.018	Max. 105M/ line/ minute	4 KW / 4 Servo	2.2 KW	8 KW	0.6 Mpa 300ml / min	5.4 × 2.0 × 2.4	Sealing machine 3.4 × 1.5 × 2.2 / Winding machine 1.5 × 1.8 × 2.2	2700 / 3200
	STR2-800M -V2i-A22	2 x 220~350 Roll max.130	300~600 / 0.006~0.018	Max. 102M/ line/ minute	6 KW / 7 Servo	3.8 KW	11.3 KW	0.6 Mpa 300ml / min	6.6 × 2.7 × 2.5	Sealing machine 3.5 × 2.0 × 2.2 / Winding machine 2.3 × 2.8 × 2.2	3900 / 4500
