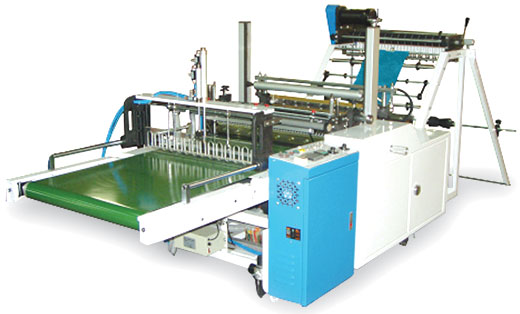

Bottom Seal Bag Making Machine
FEATURES :
  • Seal bar can be easily changed for shopping bags and plain bags.
  • Electronic clutch and brake ensure accurate bag cutting and sealing, deviation within 1mm.
  • Sensor controls input of film rolls, assuring perfect sealing line without tension.
  • Automatically stops if film is empty or stuck.
  • Print sensors guarantee the precision for printed bags. (Optional)
SPECIFICATIONS :
Model Bag Size (Max.)
linexWxL(mm)		 Thickness
of film (mm)		 Capacity
(cycle/min.)		 Power Required Machine Size
L x W x H (M)
SERVO TYPE SC-700V 1x680x1200 0.008~0.15 30~160 6.9KW 3.8X1.55X1.49
SC-800V 1x780x1250 0.008~0.15 30~160 7.3KW 3.8X1.65X1.49
SC-1000V 1x980x1450 0.008~0.15 30~160 9.0KW 3.8X1.85X1.49
SC2-700V 1x680x1200
2x305x1200		 0.008~0.15 30~160x2 7.4KW 3.8X1.55X1.49
SC2-800V 1x780x1250
2x355x1250		 0.008~0.15 30~160x2 7.8KW 3.8X1.65X1.49
SC2-1000V 1x980x1450
2x455x1450		 0.008~0.15 30~160x2 9.5KW 3.8X1.85X1.49
CLUTCH & BRAKE TYPE SC-700 1x680x1010 0.008~0.15 30~110 3.8KW 3.8X1.55X1.49
SC-800 1x780x1010 0.008~0.15 30~110 4.2KW 3.8X1.65X1.49
SC-1000 1x980x1010 0.008~0.15 30~105 4.4KW 3.8X1.85X1.49
SC2-700 1x680x1010
2x305x1010		 0.008~0.15 30~110x2 4.3KW 3.8X1.55X1.49
SC2-800 1x780x1010
2x355x1010		 0.008~0.15 30~105x2 4.7KW 3.8X1.65X1.49
SC2-1000 1x980x1010
2x455x1010		 0.008~0.15 30~105x2 4.9KW 3.8X1.85X1.49
  • Please inquire if you want have width more than 1000 type or thick...(contact us)
