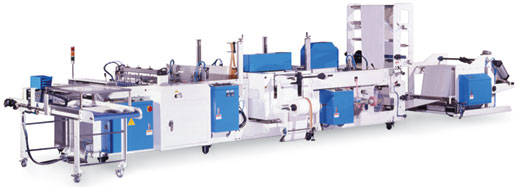

SIDE SEALING HIGH SPEED MODEL
Fully Automatic Multi-function Side Sealing Shopping Bag Making Machine
Production Speed：100 Bags/min
Optional Equipment：
1.Double Sealing Device
2.Triangle Folder
3.Stand-up Sealing Device
4.Air shaft
5.Air Compressor 7.5HP

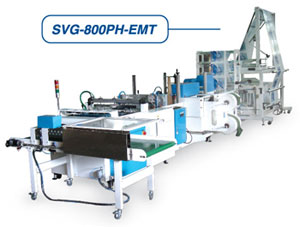

Optional:EMT-1600
Unwinder & EPC with Folder
Optional:T1600
Triangle Folder
Stand-up Device
FEATURES :
  • This machine is designed for its versatility to make different types of shopping bags, such as soft loop handle, die cut handle, poly draw and patch handle bags.
  • Intelligent management system monitors and protects the machine from misuse.
  • Advanced microprocessor motion control allows for quick length change and photo registration.
  • Soft loop feeding system is driven by pneumatic control to allow precise and quick cutting and welding.
  • Convenient auto stacker collects finished bags in an orderly fashion.
  • Die cut punching system is equipped with high speed steel knife, designed for durability and easy maintenance.
  • Poly draw inserting device automatically feeds string into the top folding and sealing area.
  • Patch handle system attaches PE film to reinforce the bag handle.
SPECIFICATIONS :
Model Width(mm) Length (mm) Top Folding Botton Gusseting Max. Production Speed (bag/min) Thickness of Film (mm) Power Required Machine Size
LxWxH(M)
Soft Loop Handle Bag Patch Handle Bag Die Cut Bag Poly-draw Bag

SVG-800PH

 Top Folding 280~540 150~700 Top Folding 150~540 150~540 250~650 Up to 75mm Up to 65mm All Bag:100 (bag length is 540mm) 0.04~0.09 8.8kw 7.3x2.0x2.2
280~700 150~700
  • Design and specifications are subject to change without prior notice
