Servo Driven Multilane Bottom Seal and T-shirt Bag Making Machine

Shapes of product:

OPTION DEVICE :

FEATURES :

Max. capacity 140 pieces / each line.

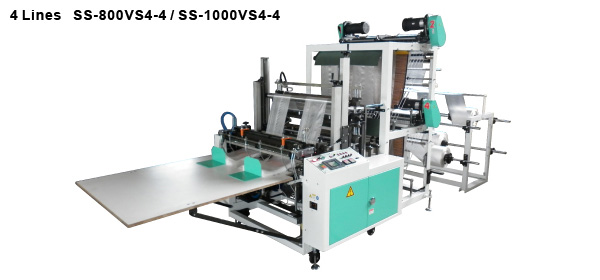

Able choice 4 lines and Up to 8 lines synchronization making the same specifications.

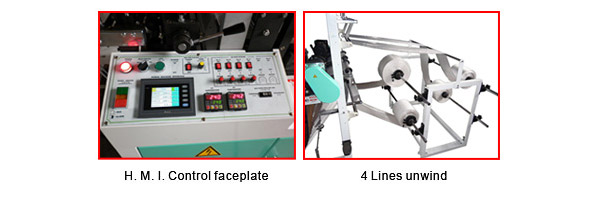

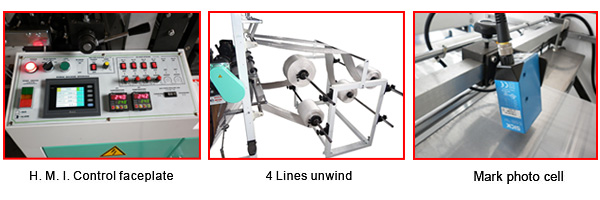

Fully digital control system with Human Machine Interface for data setting and showing.
Sealing bar can be changed easily for T-shirt bag or plain bag.
Out-feed by servo system, quick and easy length changes.
Automatically stops for out of film, jam bags, temperature abnormal, safety...etc.
Smart scissors adjustment design for the cutting knife, save your time and money.
Freight control: 20FT container can loading 4sets SS-800VS4 or3 sets SS-1000VS4, and 40FT container can loading 8 sets SS-800VS4 or 7 sets SS-1000VS4 machine.
Choose extra equipment to increase functions:
1.Automatic table conveyor for stacks then move.
2.Hot pin stack for T-shirt bag.
3.Heavy duty bag equipment for making thick bags.

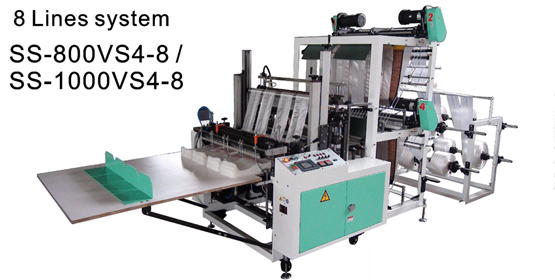

4.More line equipment for 8 lines in line.
5.Bottom silicon roller for sealing device, reduce the transfer resistance and increase sealing strength.

SPECIFICATIONS :

Model	Bag Size (mm)			Capacity	main motor/ servo motor/ feed motor/ Heater	Power require/ Air require	Machinene size/ Weight(kg)	Packing size/Loading container	Remark
	Line	linelayerW*L	Total film thickness	pcs/min*line
SS-800VS4-	4	Max. 2x2x385x1200	0.008~0.2	30~140x4	1HP with gear/ AC 2~3KW1/ DC 500W2/ 2.2KW*2	3phase 7.0KW/ 0.4Mpa (4kg) and 150L/min	Length 4.0M Width 1.53M Height 2.0M / NW. 1200kg GW. 1350kg	L 2.23Mx W1.45Mx H2.2M / 20FT--4 sets 40FT--8 sets	8 lines need add optional device
	8	Max. 2x2x385x1200		30~120x8
SS-1000VS4-	4	Max. 2x2x480x1200	0.008~0.2	30~140x4	1HP with gear/ AC 2~3KW1/ DC 500W2/ 2.4W*2	3phase 7.4KW/ 0.4Mpa (4kg) and 150L/min	Length 4.0M Width 1.73M Height 2.0M / NW. 1300kg GW. 1450kg	L 2.23Mx W1.45Mx H2.2M / 20FT--3 sets 40FT--7 sets	8 lines need add optional device
	8	Max. 4x2x225x1200		30~120x8
Option equipment	1.Automatic table conveyor; 2.Hot pin stack device; 3.Heavy duty bag equipment; 4. 8 lines equipment; 5.Bottom silicon roller for Sealing device.
