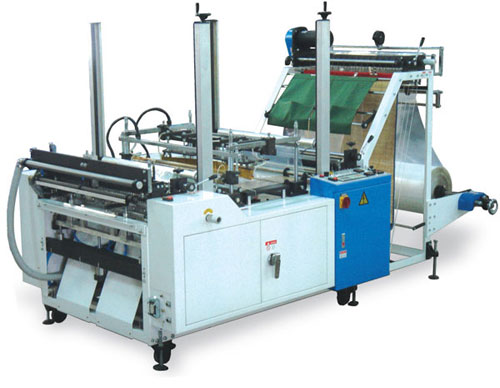

| Laundry Bag Making Machine |
 |
|
|
 |
|
 |
| |
| OPTIONAL EQEIPMENT : |
 |
| FEATURES : |
- This machine can make product bags and laundry bags with functions for cut off and continuous perforation winding. (Optional)
- Winding system uses tension control and multi-winding speed control.
- The shoulder seal device is adjustable.
- Tension-free seal device.
- Automatic tear shoulder device and conveyor device. (Optional)
- Print Sensor device guarantees precisely printed bags. (Optional)
- Auto alarm and stop function in case of broken film or in case the machine runs out of material.
|
| SPECIFICATIONS : |
| Model |
Bag Size
(mm) |
Thickness
of film (mm) |
Capacity
(cycle/min.) |
Rewinder Dia.(mm) |
Material Film Dia. |
Power Required |
Machine Size
L x W x H (M) |
| SERVO TYPE |
SLB-800V
(C;R;H) |
750~1800 |
0.01~0.08 |
30~120 |
75~200 |
max.700 |
7.2W |
4.7X1.7X1.99 |
SLB-1000V
(C;R;H) |
940~1800 |
0.01~0.08 |
30~120 |
75~200 |
max.700 |
8.6W |
4.7X1.9X1.99 |
| CLUTCH & BRAKE TYPE |
SLB-800
(C;R;H) |
750~1010 |
0.01~0.08 |
30~70 |
75~200 |
max.700 |
6.5W |
4.7X1.7X1.99 |
SLB-1000
(C;R;H) |
940~1010 |
0.01~0.08 |
30~70 |
75~200 |
max.700 |
6.9W |
4.7X1.9X1.99 |
|
