STP-800-2/STP-1000-2/STP-1200-2

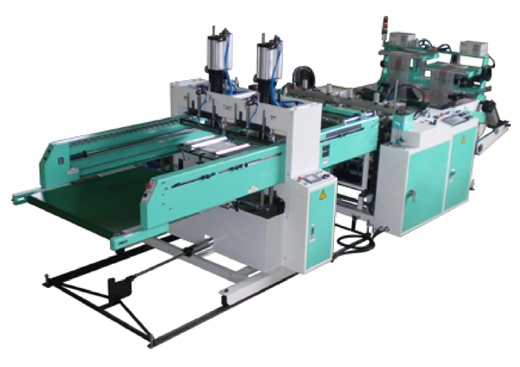

Fully Automatic Hot sealing T-shirt Bag Making Machine
High Speed Two-lines and Two Servo Driven with Auto Punch
Dual lines Ultrasonic EPC. device (optional)

No film pre-connect device

Fold device of punch machine
Shapes of product

Heavy duty lifting unwind(optional)

Unwind auto tension control

    FEATURES :
  • High speed operation. Capacity:400 pcs/min. by 2 lines;
  • This machine has 2 mark sensor, can produce 2 lines separately printed T-shirt bag.
  • Sealing bar can be easily changed, for T-shirt bag and plan bag.
  • Hot-cut sealing with 4 temperature controllers; the sealing keep high quality.
  • 2 sets servo system, small length tolerance.
  • Feed auto speed control by inverter, need no adjustment.
  • Jam or no film auto stop; no film pre-connect device make film change faster.
  • Dual lines Ultrasonic EPC.(optional) device make finished product ordered.
  • Heavy duty lifting unwind(optional) easy to put film roll. unwind auto tension control is standard.
SPECIFICATIONS :
Model Bag Size(max)
line x W x L(mm)
Max-Cutting of Punch(mm) Thickness of film(mm) Capacity
(pieces/min)
Main Motor/Servo Motor Heater Power Required Air supply Required Machine Size
L x W x H(M)
Packing Size
L x W x H(M)
N.W./G.w.
(kgs)
STP-800-2 2Lines Max. width 355 Length 300~700 Thickness of pile Max. 20mm 0.012~ 0.035mm Max. 200(1 line)
Max. 400(2 lines)
2Hp 4P/3.0 KW x 2 1.5KWx2
+
0.8KWx2
8.5KW 0.6Mpa
400ml/minute
6.5x1.7x1.95 Sealing machine
2.35X1.85x2.0/
Punch machine
2.9x1.65x2.1
2500/2900
STP-1000-2 2Lines Max. width 455 Length 300~700 Thickness of pile Max. 20mm 0.012~
0.035mm
Max. 200(1 line)
Max. 400(2 lines)
2Hp 4P/3.0 KW x 2 1.9KWx2
+
1.0KWx2
9.7KW 0.6Mpa
400ml/minute
6.5x1.9x1.95 Sealing machine
2.35X2.05x2.0/
Punch machine
2.9x1.85x2.1
2700/3200
STP-1200-2 2Lines Max. width 550 Length 300~700 Thickness of pile Max. 20mm 0.012~
0.035mm
Max. 200(1 line)
Max. 400(2 lines)
2Hp 4P/4.4 KW x 2 2.3KWx2
+
1.2KWx2
12.5KW 0.6Mpa
400ml/minute
6.5x2.1x1.95 Sealing machine
2.35X2.25x2.0/
Punch machine
2.9x2.05x2.1
3000/3500
  • Design and specifications are subject to change without prior notice
