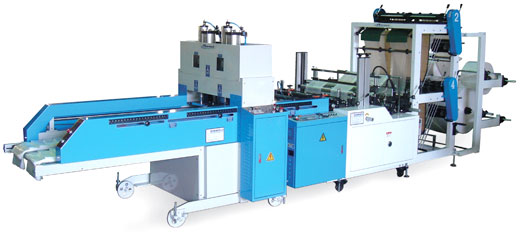

Fully Automatic Servo-driven Double Layer T-shirt Bag Making Machine


With Punch Machine	Without Punch Machine

FEATURES :

High speed operation. Capacity: 640 pcs/min. by 4 lines; 960 pcs/min. by 6 lines.
This machine is specially designed to make non-printing T-shirt bags or continuous printing T-shirt bags.
Sealing bar can be easily changed forT-shirt bags and plain bags.
Fast and accurate servo-driven feed system ensures accurate bag cutting and sealing, deviation within 0.5 mm.
Sensor controls the input of film rolls, assuring perfect sealing line without tension.
Automatically stops if film is empty or stuck.
Unique design with easy change between T-shirt bags and calendar bags. (Optional)

SPECIFICATIONS :

Model		Bag Size for Flat(Max.) linexlayerxWxL (mm)	Bag Size for T-Shirt(Max.) line x layer x W x L(mm)	Thickness of film (mm)	Max. Punch Size of Block Bag linexWxLxT (mm)	Capacity (cycle / min.)	Power Required	Air supply required/ minute	Machine Size LxWxH(M)
Two Line Series	SS4-700VTP	1x2x680x1200 2x2x305x1200	2x2x305x650	0.008~0.15	2x305x650x20	30~160x4	8.5KW	0.5Mpa 300ml	(M) 4.25x1.55x1.99 (P) 3.00x1.20x1.50
	SS4-800VTP	1x2x780x1200 2x2x355x1200	2x2x355x650	0.008~0.15	2x355x650x20	30~160x4	9.0KW	0.5Mpa 350ml	(M) 4.25x1.65x1.99 (P) 3.00x1.30x1.50
	SS4-1000VTP	1x2x980x1200 2x2x455x1200	2x2x455x650	0.008~0.15	2x455x650x20	30~150x4	10.4KW	0.5Mpa 400ml	(M) 4.25x1.85x1.99 (P) 3.00x1.50x1.50
Three line Series	SS6-800VTP	1x2x780x1200 2x2x355x1200 3x2x220x1200	3x2x220x650	0.008~0.15	3x220x650x20	30~155x6	9.8KW	0.5Mpa 400ml	(M) 4.41x1.65x1.99 (P) 3.00x1.30x1.50
Three line Series	SS6-1000VTP	1x2x980x1200 2x2x455x1200 3x2x320x1200	3x2x320x650	0.008~0.15	3x320x650x20	30~150x6	11.2KW	0.5Mpa 400ml	(M) 4.41x1.85x1.99 (P) 3.00x1.50x1.50
