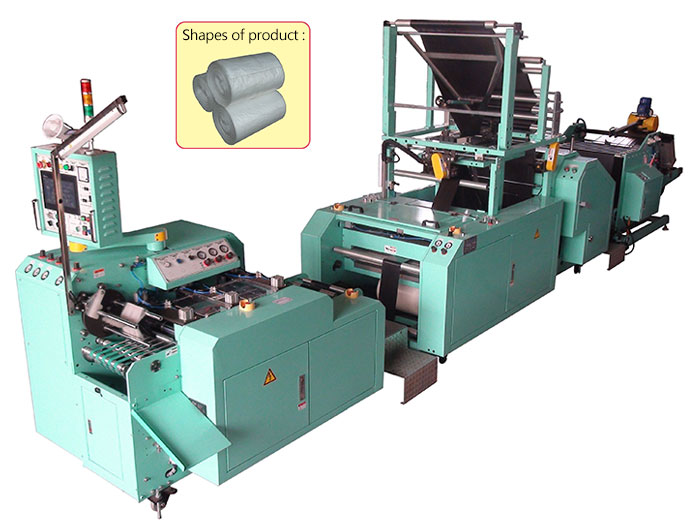

Auto-Change Bottom sealing Perforation Garbage Bag with Dual Fold Coreless on Roll Making Machine (Servo Co-speed system)
In-line auto package possibility

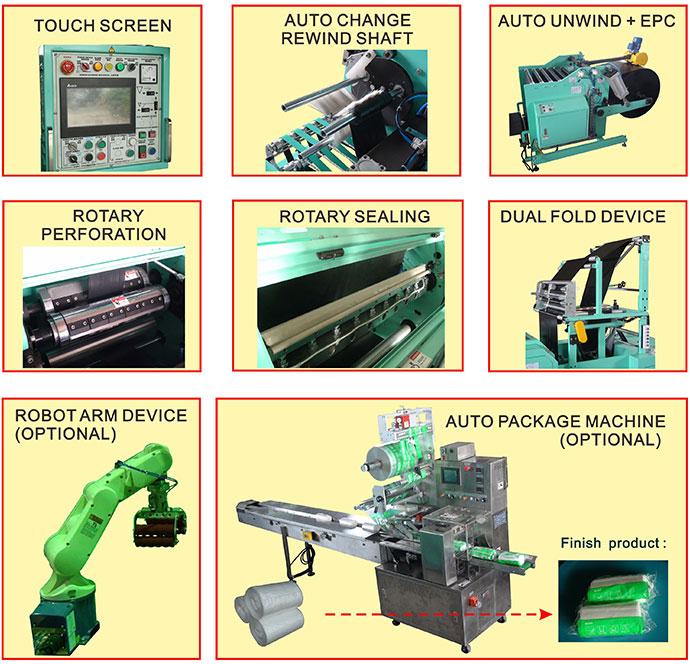

MACHINEFEATURE :
  1. Easy change the bag length and tension by touch screen digital setting.
  2. Rotary Sealing and Perforation designed make fast speed and smoothly work,Tensionless sealing; Low noise running and Long life perforation knife designed.
  3. Every knife can use much more than 50000000 times, maximum up to 80000000 times.
  4. Dual fold device for "V" shape; "C" shape, "N" shape and "2V" shape folding.
  5. Easy change the fold shape by 3 ways adjustment designed with power motor move.
  6. Printing mark function possibility and Customized Perforated pitch.(optional)
  7. Heavy duty lifting auto-unwind with Edge Position Control.
  8. Multi servo co-speed system, digital tension setting for fold and perforation.
  9. Products roll by single shaft winding, the roll does not convex umbilical.
  10. Automatic speed follow system, run machine just by one touch.
  11. Easy to operate and maintain full-featured surveillance system by HMI.
  12. In- line Robot working station or automatic package function possibility.(optional)
SPECIFICATIONS :
Model
Bag Width(mm)
line x Dia.
Bag Length/
Film thickness
(mm)
Capacity
(Meter /min)
Servo power /
Servo quantity
Heater
Power
Required
Air supply
Required
Machine Size
L × W × H (M)
Packing Size
L × W × H (M)
N.W. / G.W.
(Kgs)
STR-680VC
-RB3S
1 x 380~680
Roll max.110
450~2000/
0.008~0.018
Max. 120M/
line/ minute
13.8KW/
5+3 Servo
2.0 KW 15KW 0.6 Mpa
400ml / min
8.1 × 1.4× 2.4 Sealing machine
3.15 × 1.5 × 2.3 /
Rewind + Unwind
2.6 × 2.1 × 2.2
4000 / 4500
STR-850VC
-RB3S
1 x 540~850
Roll max.110
450~2000 /
0.008~0.018
Max. 120M/
line/ minute
14.8KW/
5+3 Servo
2.8 KW 17KW 0.6 Mpa
400ml / min
8.3 × 1.6× 2.6 Sealing machine
3.35 × 1.7 × 2.3 /
Rewind + Unwind
2.9 × 2.3 × 2.2
4700 / 5300
STR-1000VC
-RB3S
1 x 680~1000
Roll max.110
450~2000 /
0.008~0.018
Max. 120M/
line/ minute
15.8KW/
5+3 Servo
3.5 KW 19KW 0.6 Mpa
400ml / min
8.5 × 1.8× 2.8 Sealing machine
3.55 × 1.9 × 2.3 /
Rewind + Unwind
3.2 × 2.5 × 2.2
5500 / 6200
Option
1. In- line mark sensor device ; 2. Customized Perforated pitch; 3. In-line Robot working station; 4. Automatic package machine; 5. PC Automatic thermal code system for auto package system.
