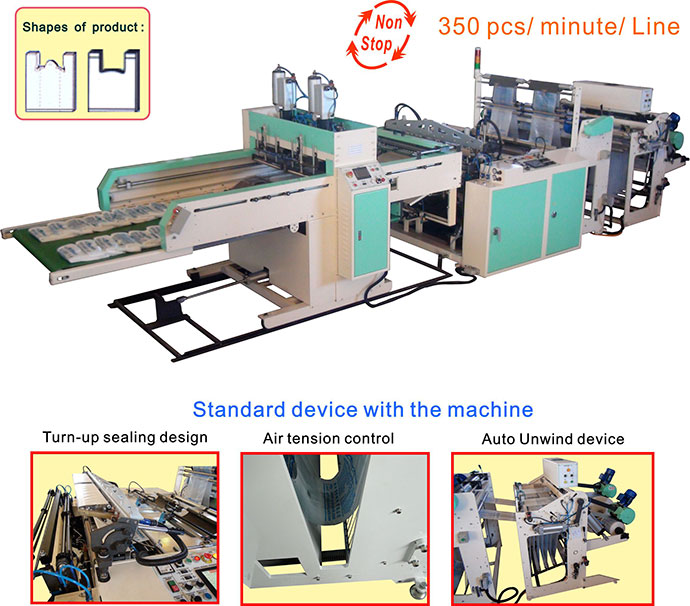

Super High Speed Fully Automatic 2 Track Hot-cut
T-Shirt Bag Making Machine with Air Tension control

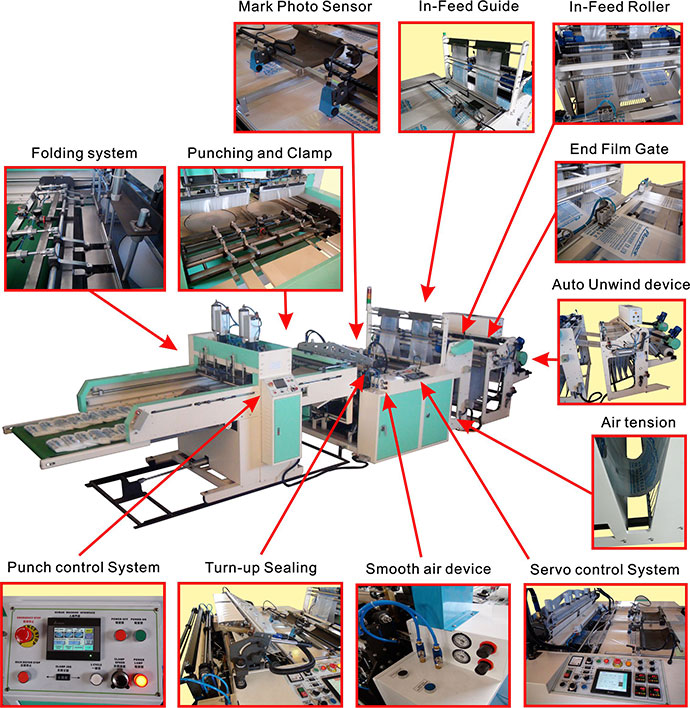

FEATURES :
  1. Super high speed operation. Capacity : Max. 2*350 pcs/min. ( 700pcs/min)
  2. High speed auto-punch system. 1 Punching cycle with folding just 10sec.
  3. 2 sets servo system with 2 mark sensor, can produce 2 lines printed T-shirt bag.
  4. Turn-up Sealing bar design, easy to clean and maintain.
  5. Hot-cut sealing with 4 temperature controllers; the sealing keep high quality.
  6. Feed auto speed control by inverter and air tension control.
  7. Block or no film auto stop; no film pre-connect device make film change faster.
  8. All system by H.M. I. and P.L.C. control, all-function display, maintenance.
  9. Heavy duty lifting auto unwind and Air shaft easy to put film roll.
SPECIFICATIONS :
Model
Bag Width line × W (max) (mm)
Bag Length/ Film thickness(mm) Max-Cutting of Punch(mm) Capacity (pcs/ min/ line) Main Motor / Servo Motor
Heater
Power Required
Air supply Required
Machine Size
L × W × H (M)
Packing Size
L × W × H (M)
N.W. / G.W.
(Kgs)
Container size

STP-
800H2S-2

2 x 360 300~700 /
0.008~0.035

Thickness of pile
Max. 20 mm

Max. 350*2 2Hp 4P/
4.5 KW × 2
1.8 KW
× 4
(7.2KW)
15KW 0.6 Mpa
400ml / min
7.5 × 1.7 × 1.95 Sealing machine
2.35 × 1.75 × 1.85
Punch machine
1+2.9 × 1.7 × 2.2
4000 / 4500

1* 20 ft / set
STP-
1000H2S-2
2 x 460 300~700 /
0.008~0.035
Thickness of pile
Max. 20 mm
Max. 350*2 2Hp 4P/
4.5 KW × 2
2.2 KW
× 4
(8.8KW)
16.5KW 0.6 Mpa
400ml / min
7.5 × 1.9 × 1.95 Sealing machine
3.35 × 1.7 × 2.3 /
Rewind + Unwind
2.9 × 2.3 × 2.2
4500 / 5000

1* 20 ft / set
STP-
1200H2S-2
2 x 560 300~700 /
0.008~0.035
Thickness of pile
Max. 20 mm
Max. 350*2 2Hp 4P/
4.5 KW × 2
2.5 KW
× 4
(10KW)
18KW 0.6 Mpa
400ml / min
7.5 × 2.1 × 1.95 Sealing machine
2.35 × 2.15 × 1.85
Punch machine
0.9+2.8× 2.1× 2.2
5500 / 6000

1* 20 ft / set
STP-
500HS-1
1 x 460 300~700 /
0.008~0.035
Thickness of pile
Max. 20 mm
Max. 350*1 2Hp 4P/
4.5 KW × 2
2.2 KW
× 2
(4.4KW)
8.5KW 0.6 Mpa
400ml / min
7.5 × 1.4 × 1.95 Sealing machine
2.35 × 1.55 × 1.85
Punch machine
1+2.9 × 1.3 × 2.2
3000 / 3400

1* 20 ft / set
