HIGH SPEED BLOWN FILM EXTRUDER
HDPE / LDPE / LLDPE

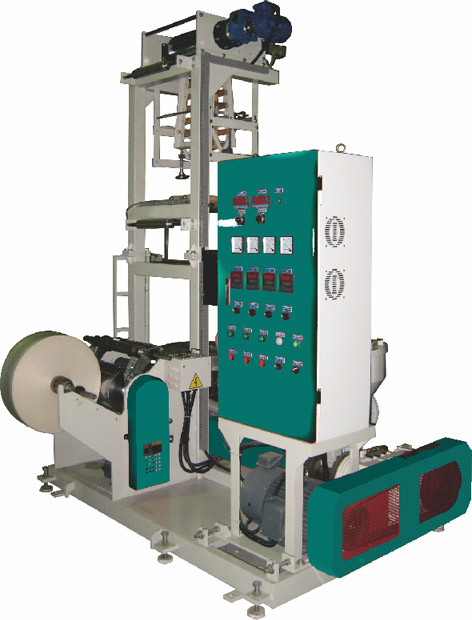

MODEL: SE-JE35 / SE-JE45M
Blown Film Machine

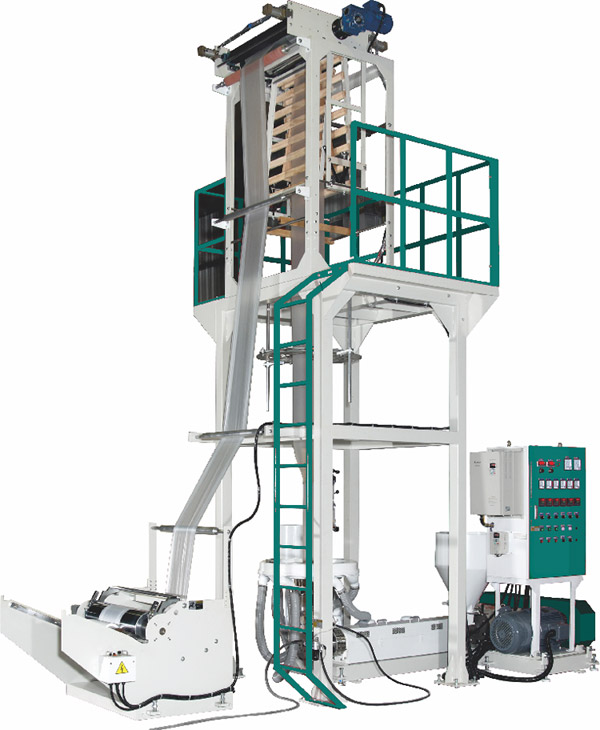

MODEL: SE-JE45/JE55/JE65
Blown Film Machine
SPECIFICATIONS :
MODEL
Raw Material
SE-JE35
-300
SE-JE45M
-600
SE-JE45
-600
SE-JE55
-800
SE-JE55
-1100
SE-JE65
-1300
Film Width(mm) 100~250 200~525 200~525 300~750 350~1000 450~1200
Thick of Film(mm) HDPE:0.008~0.055mm LDPE:0.015~0.8mm
Extrusion Output
(Kg/Hr)
HDPE:20KG
LDPE:26KG
HDPE:40KG
LDPE:50KG
HDPE:40KG
LDPE:50KG
HDPE:80KG
LDPE:90KG
HDPE:80KG
LDPE:90KG
HDPE:100KG
LDPE:115KG
Screw Dia. L:D ø35mm 28:1 ø45mm 28:1 ø45mm 28:1 ø55mm 28:1 ø55mm 28:1 ø65mm 30:1
Main Motor 10HP 20HP 20HP 40HP 40HP 50HP
Die Size ø40 ø80 ø80 ø120 ø140 ø175
Air Blower 2HP 3HP 5HP 5HP 5HP 7.5HP
Power Require 20KW 32KW 32KW 45KW 45KW 55KW
Machine Height 2.6M 3.5M 4.0M 5.2M 5.2M 6.2M
Optional
Equipment
Auto loader, Manual screen changer, Embossing Roller, Double winder, Air Shaft,
Rotating device, Surface Treater, Chiller, 2nd Take-up roller(only for SE-JE55/JE65)
  • Design and specifications are subject to change without prior notice
