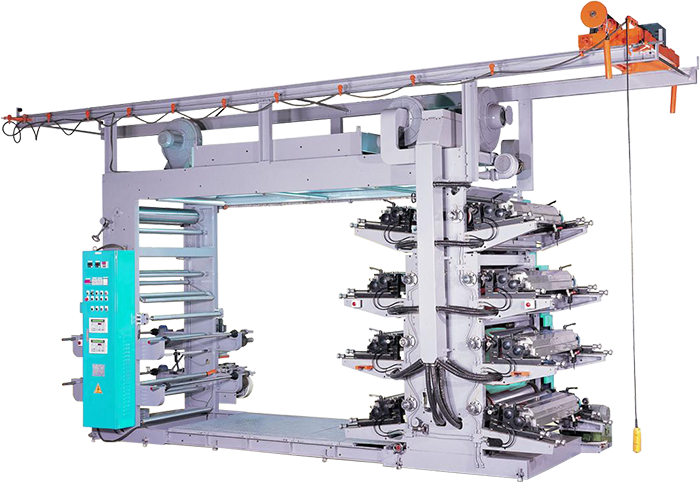

8 COLOR FLEXOGRAPHIC PRINTING MACHINE
Printing Machine
SPECIFICATIONS :
Description\Printing with(mm) 800 1000 1200
Color printed 8
Printing speed (max.)(M/min.) 60
EPC 1
Film passing width (max.)(mm) 900 1100 1300
Printing length (mm) 200-1200
Printing possibility 0+8, 1+7, 2+6, 3+5, 4+4
Main motor (HP) 7 1/2 10 10
Heater (KW) 1.5 X 22 1.5 X 25 1.5 X 28
Blower for heater (HP) 1/2 X1 , 2 X 2 , 5 X 1 1/2 X1 , 2 X 2 , 7 1/2 X 1
Hydraulic pump motor (HP) 1
Lnk roll motor (HP) 1
Torque motor (kg) 50 X 2 75 X 2
Tension controller 2
Total Power(KW) 40 43 43

Printing width
(mm)
Length
(cm)
Width
(cm)
Hieght
(cm)
Net weight
(kg)
Gross weight (kg) Loading Volunie
(cm)
800 730 220 400 6500 7800
1000 730 250 400 7000 8300 820x120x230
1200 730 260 400 7500 8800
  • Design and specifications are subject to change without prior notice
